Power Quality Studies
for Industrial Excellence
We identify, quantify, and mitigate electrical risks with Class A certified equipment (Dranetz HDPQ Plus). Full compliance analysis against IEEE 519 standards for your facility.
Class A certified Dranetz HDPQ Plus equipment meeting IEC 61000-4-30 standards for defensible measurements.
Proven 5-step methodology: assessment, installation, monitoring, analysis, and actionable recommendations.
Complete power quality study process from single-line diagram analysis through final recommendations report.
Our Process
Power Quality Survey Methodology
Our proven 5-step approach ensures accurate diagnostics and effective solutions for your facility.
Single-Line Diagram
Provide your plant single-line diagram for identification of connection points and monitoring locations.
Equipment Installation

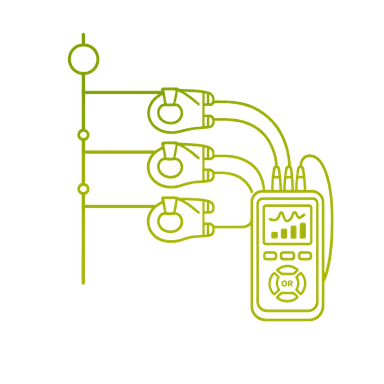

Installation of Dranetz Class A measurement equipment at strategic points.
IEC 61000-4-30 Certified
Data Collection
Measurement for at least 1 week to obtain representative demand sample.
Results Report
Detailed report referencing IEEE 519 standards with full compliance analysis.

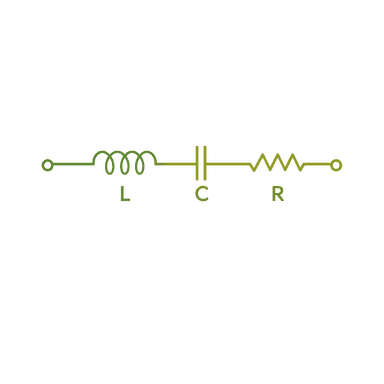

Solution Design
If non-compliance is found, we recommend optimal equipment with frequency sweep analysis.
Compliance Evaluation
Parameters We Measure
Complete evaluation according to international standards.
Voltage Unbalance
Current Unbalance
Total Demand Distortion (TDD)
Individual Current Harmonics
Voltage THD (VTHD)
Individual Voltage Harmonics
All measurements performed with IEC 61000-4-30 Class A certified equipment
Solutions
Mitigation Equipment
When we detect problems, we design and install the optimal solution for your facility with frequency sweep analysis to prevent resonance.

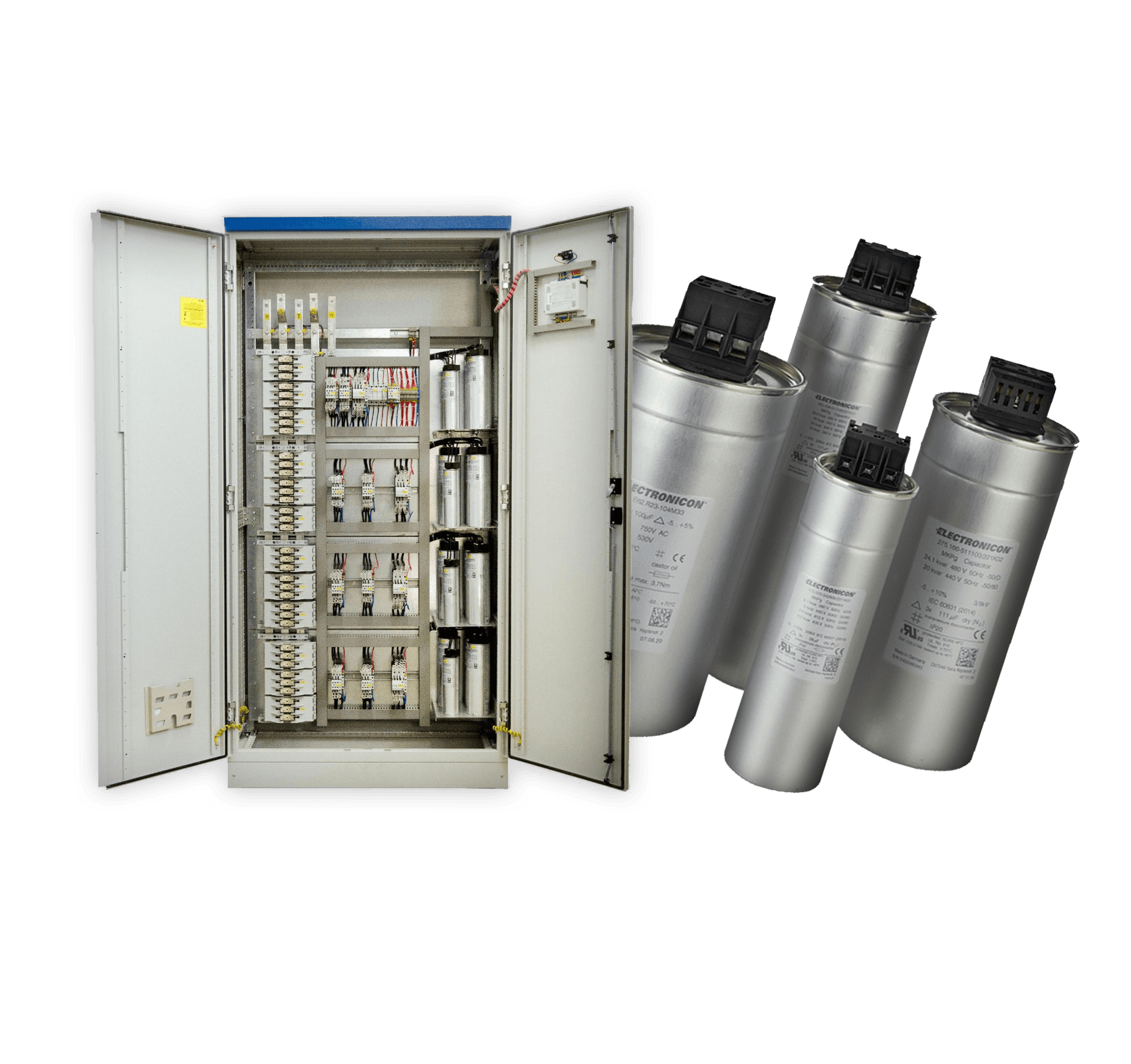

CAPACITOR BANK
Power Factor Correction
Capacitor banks are the most common solution for power factor correction. They provide reactive power compensation to optimize energy consumption and avoid utility penalties for low power factor.
Main Features
- Power factor improvement to 0.95 or higher
- Reduced demand charges and energy costs
- Automatic switching based on load requirements
- Protection against overvoltage and overcurrent
- Compliance with utility power factor requirements

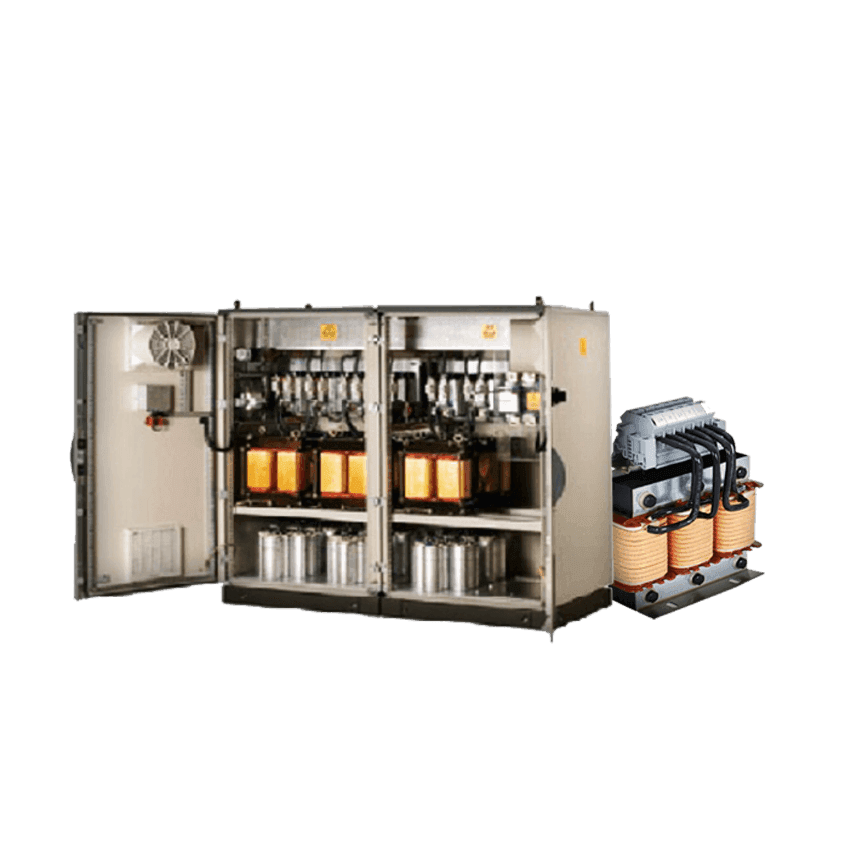

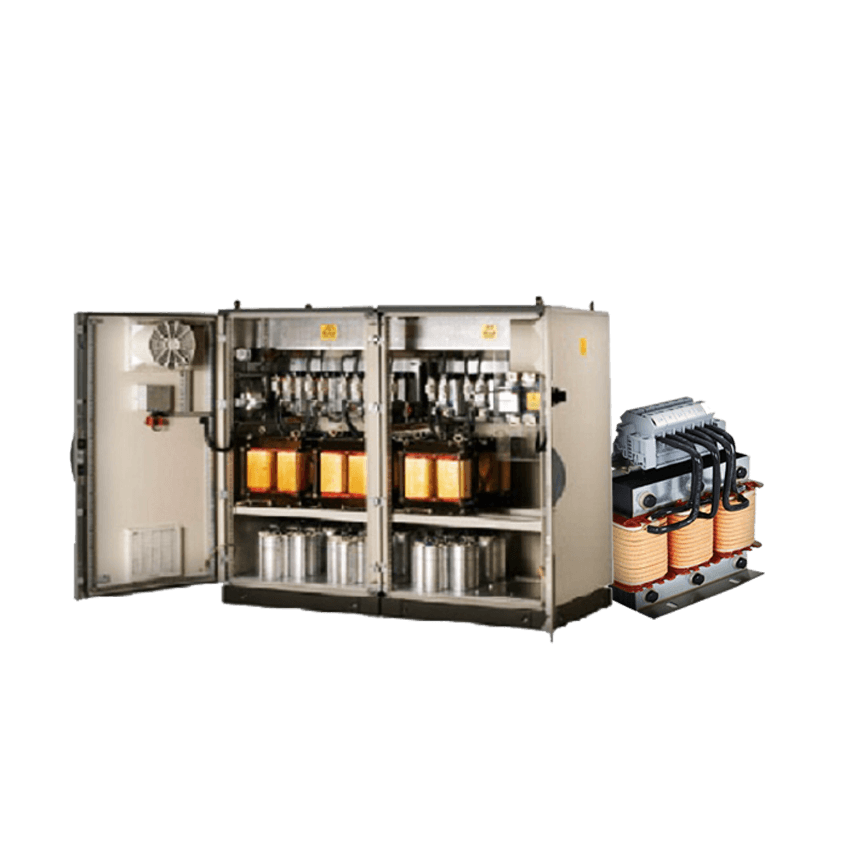

PASSIVE HARMONIC FILTERS
Economical Harmonic Mitigation
Passive harmonic filters are the more economical solution and can be used in a variety of capacities and voltages. These filters utilize components like inductors, capacitors and resistors to reduce, or mitigate, harmonics to tolerable levels as defined by IEEE 519.
Main Features
- Industry standard for 6-pulse rectifier and motor drives
- Filters for diode rectifier without DC-link choke
- Best-in-class partial load performance
- Most compact design with low footprint
- Plug and play, ready to use installation
- Guaranteed stability with little to no power consumption

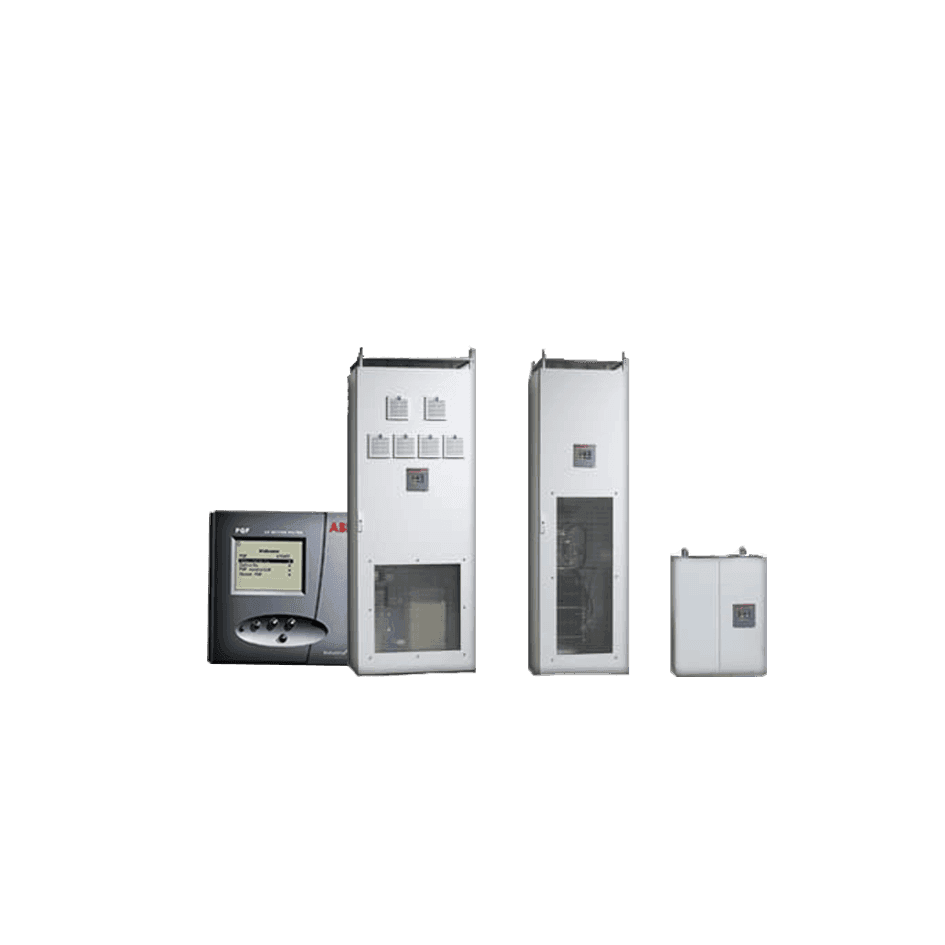

ACTIVE HARMONIC FILTERS
Dynamic Harmonic Correction
Active filters are the more permanent flexible solution. These filters actively monitor the system and use a set of transistors and capacitors to filter the current waveform by injecting inverse currents to cancel out the undesired harmonic components.
Main Features
- Compact active filter for 3-phase loads with and without neutral
- <5% THDi achievable even on complex mixed loads
- Intelligent system approach offering tailored solutions
- Extended temperature range of modules up to 50°C
- Ultra-fast and dynamic reactive power compensation
- Load balancing and unloading of neutral wires
- Compliance with IEEE 519, EN 61000-3-12 standards
Frequency Sweep Analysis included with every solution design to prevent electrical resonance and ensure optimal performance.
Benefits
Why Trust Real EnergiX?
A power quality study protects your equipment, ensures compliance, and prevents costly downtime before it happens.
Prevention & Compliance
Protect Your Operations
Downtime Prevention
Identifies sags, swells, and interruptions affecting critical processes. A single unplanned outage can cost more than the entire study.
Equipment Protection
Detects harmonics, unbalance, and overheating in VFDs, UPS, PLCs, and transformers.
Regulatory Compliance
Evaluates conformity with IEEE 519, IEC 61000, and grid requirements. Avoids contractual penalties.
Root Cause Diagnosis
Correlates electrical events with operational failures. Avoids trial-and-error solutions.
Quality & Safety
Certified & Reliable
Optimized Mitigation
Defines filters, reactors, or specific adjustments for the actual system. Avoids oversizing.
Class A Instrumentation
Measurements with IEC 61000-4-30 Class A equipment. Results defensible to auditors and insurers.
Extended Equipment Life
Reduces thermal and dielectric stress on equipment. Lower maintenance and replacement costs.
Electrical Safety
Identifies conditions that can cause overheating or catastrophic failures. Reduces fire risk.
Equipment
Professional Measurement Tools
Industry-leading instrumentation that ensures accurate, reliable, and standards-compliant power quality measurements.

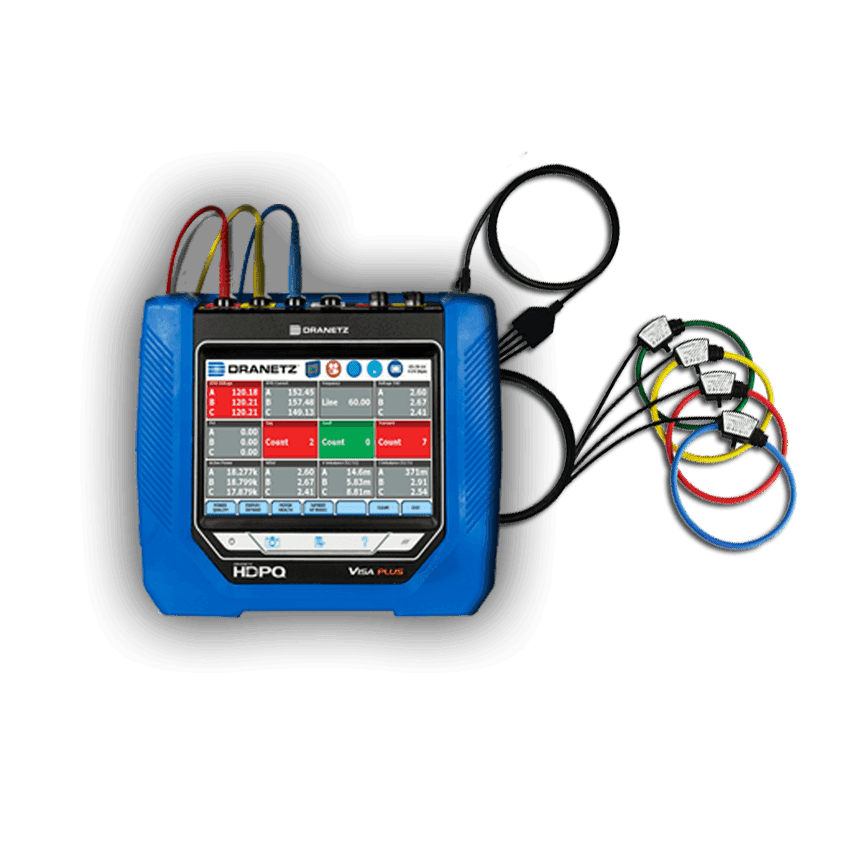

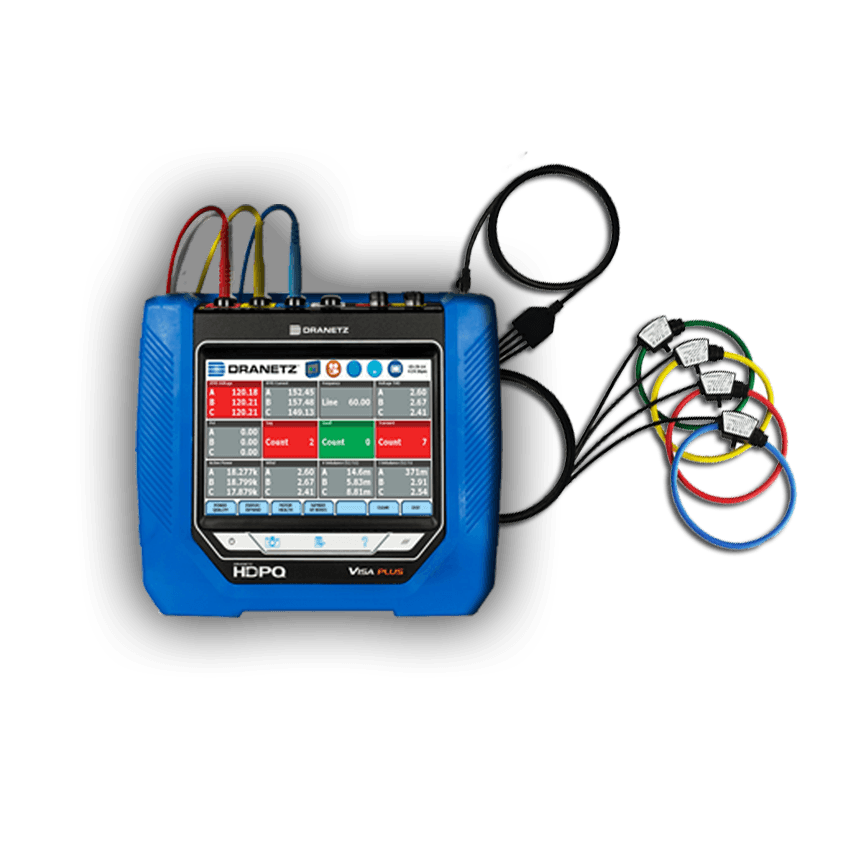

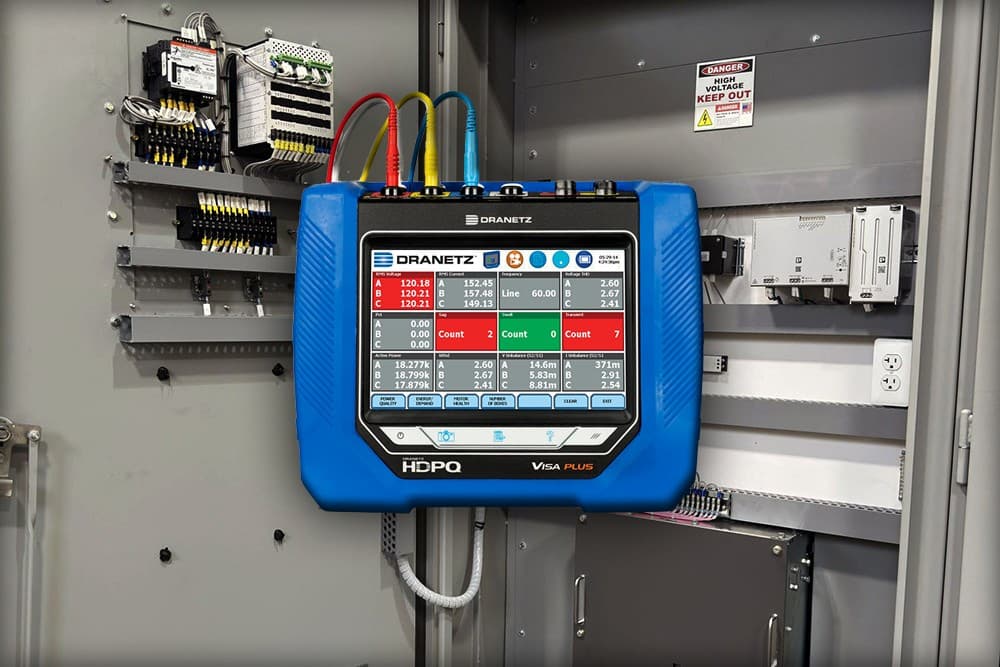

DRANETZ HDPQ PLUS FAMILY
Class A Power Quality Analyzer
We use industry-leading Dranetz Class A power quality analyzers, ensuring measurements that meet the highest international standards (IEC 61000-4-30) and are defensible in audits and regulatory reviews.
Key Features
- Class A certified per IEC 61000-4-30
- 10 MHz sampling rate for transient capture
- Simultaneous 3-phase + neutral measurement
- GPS time synchronization for precision
- Up to 1 year continuous recording capability
- Automatic event detection and capture

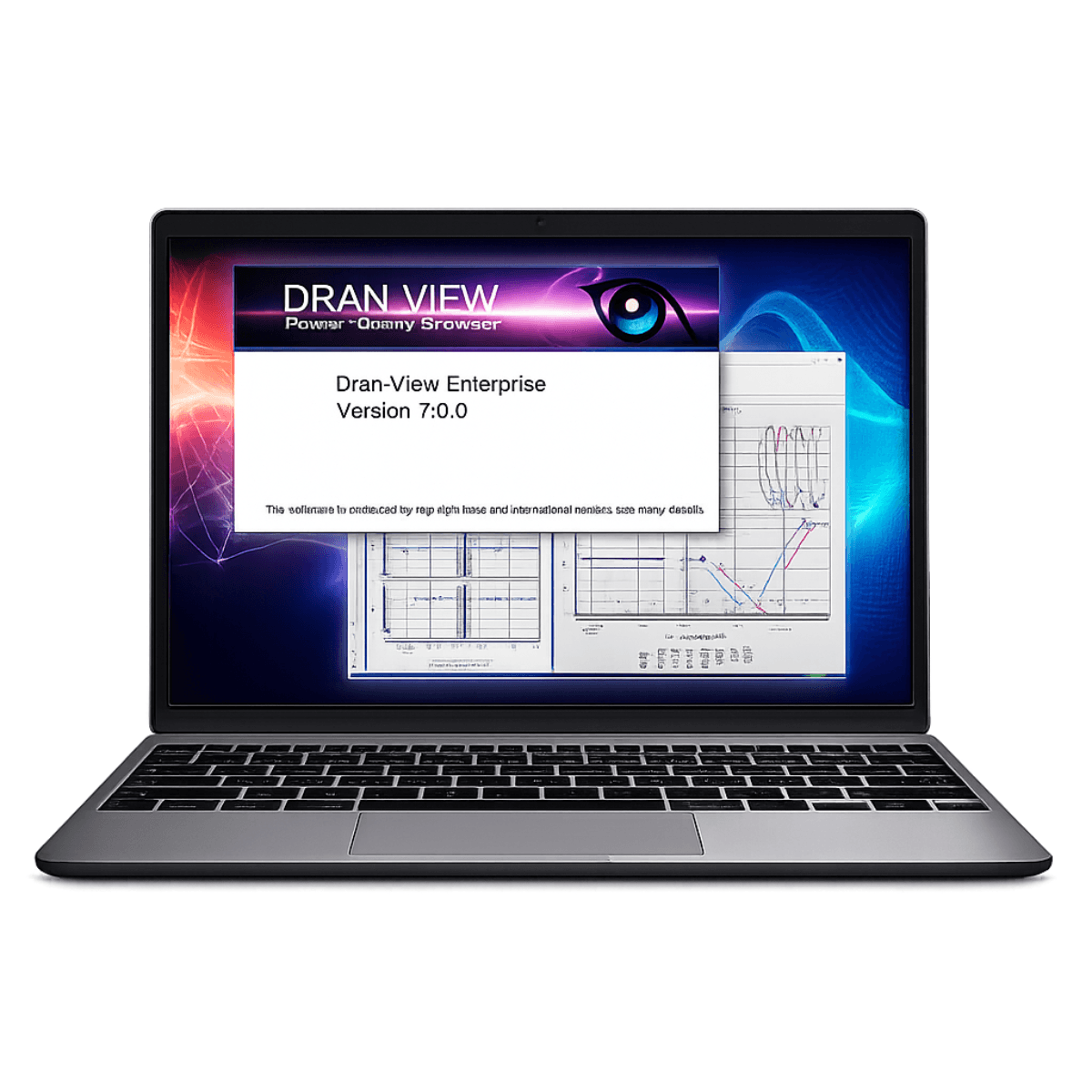

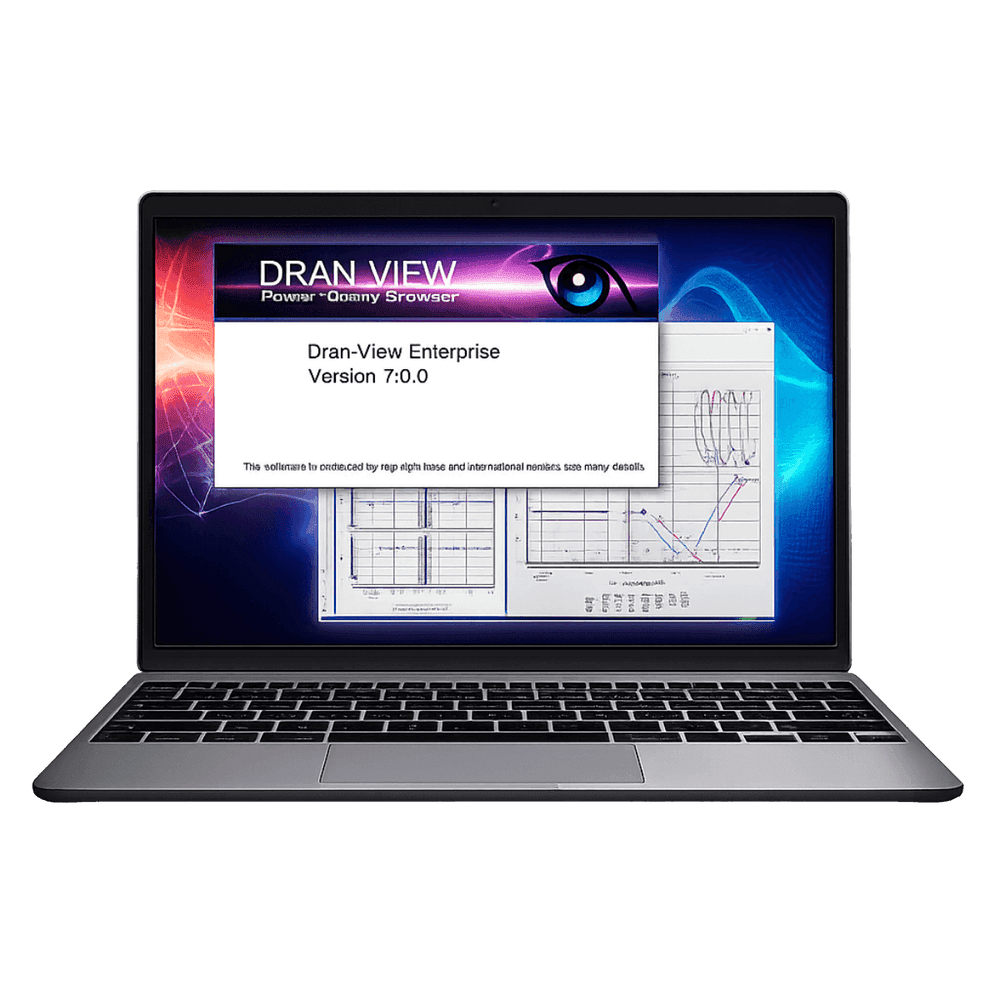

DRAN-VIEW 7 SOFTWARE
Professional Analysis & Reporting
Dran-View 7 is the industry-standard software for power quality data analysis. Combined with our custom Python tools for advanced statistics, we deliver comprehensive reports with actionable insights.
Key Features
- Comprehensive event analysis and trending
- IEEE 519 compliance reporting
- Harmonic spectrum analysis and visualization
- Custom report generation for stakeholders
- Enhanced with proprietary Python analytics
- Statistical analysis beyond standard features
Class A Certification ensures our measurements are accurate, repeatable, and defensible in audits and regulatory reviews.
Case Study
Owens & Minor
Power Quality Study for Manufacturing Facility
MISSING CONTENT
FALTA: Descripción del estudio realizado en Owens & Minor — ¿Qué se encontró? ¿Qué se recomendó?
Sectors
Industries We Serve
Industrial clients, buildings, hotels, or any load center connected to medium voltage distribution network.
Industry

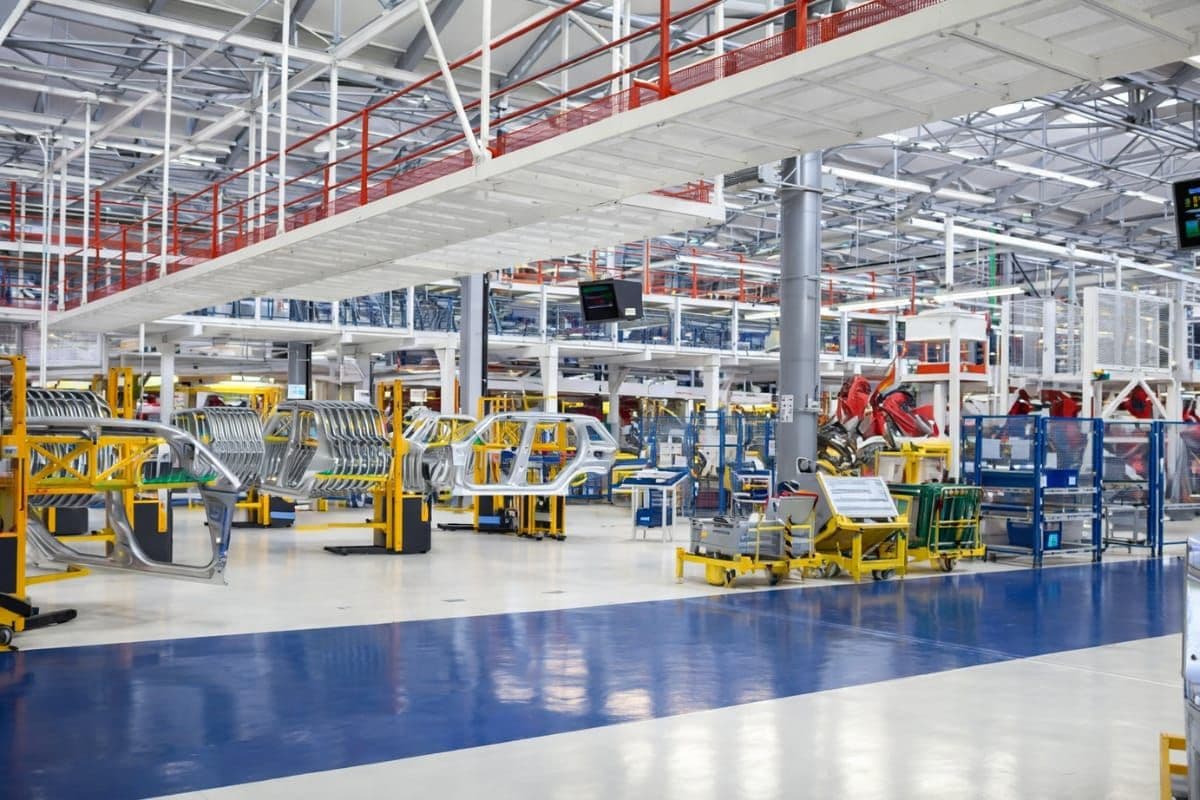

Manufacturing
Industrial plants and manufacturing facilities with high power quality requirements. Variable frequency drives, motor drives, and welding equipment generate significant harmonic distortion that degrades equipment performance and increases operational costs.
How We Help
- Harmonic filtering (passive or active)
- Power factor correction with capacitor banks
- Voltage regulation and stabilization
- IEEE 519 compliance
Clients in this sector
Industry
Hotels & Hospitality
Hotels and hospitality facilities rely on sensitive electronic equipment and large HVAC systems that are both sources and victims of power quality issues. Poor power quality leads to guest complaints, equipment failures, and increased energy costs.
How We Help
- HVAC harmonic mitigation
- Power factor optimization
- Voltage stabilization for sensitive equipment
- Energy cost reduction strategies
Clients in this sector
Industry

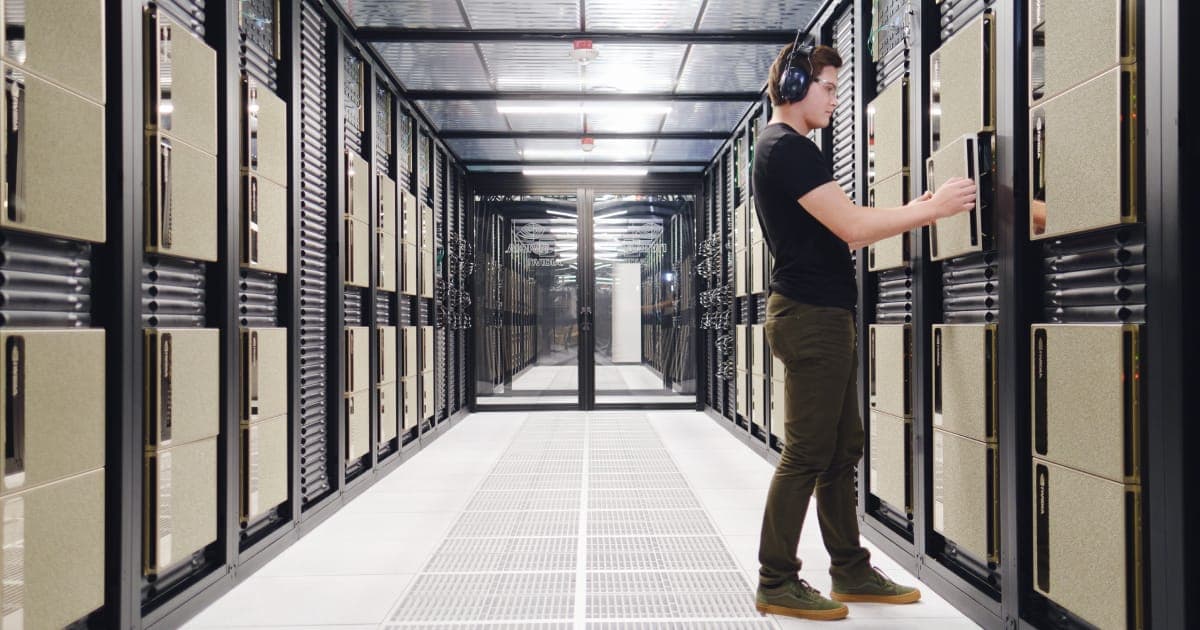

Commercial Buildings
Any load center connected to medium voltage distribution networks. Commercial buildings with large lighting systems, data centers, and modern office equipment face increasing power quality challenges as electronic loads grow.
How We Help
- Harmonic filtering for commercial loads
- Power factor correction
- Neutral current mitigation
- Energy efficiency optimization
Clients We've Worked With
Power quality studies completed for our clients
Owens & Minor
Manufacturing Facility
Park Ohio
Industrial Plant
Hampton Inn
Hotel
About Us
Real EnergiX Solutions
Real EnergiX Solutions is a Texas Registered Engineering Firm specializing in power quality studies for industrial and commercial facilities.
We serve clients in the Eagle Pass, TX and surrounding region, providing comprehensive power quality analysis with Class A certified equipment.
Our mission is to help facilities identify, quantify, and mitigate electrical risks that are invisible to standard inspections, ensuring compliance with IEEE 519 standards.
- Texas Registered Engineering Firm (LLC)
- IEC 61000-4-30 Class A Certified Equipment
- Frequency Sweep Included with Every Solution Design
- IEEE 519 & Código de Red Compliant Analysis
Eagle Pass, TX 78852
United States
